Propolift Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of 12 ton electric forklift in China. We are committed to providing high quality custom service and OEM service to global clients. Welcome to buy durable 12 ton electric forklift at competitive price from our factory.
Products Description

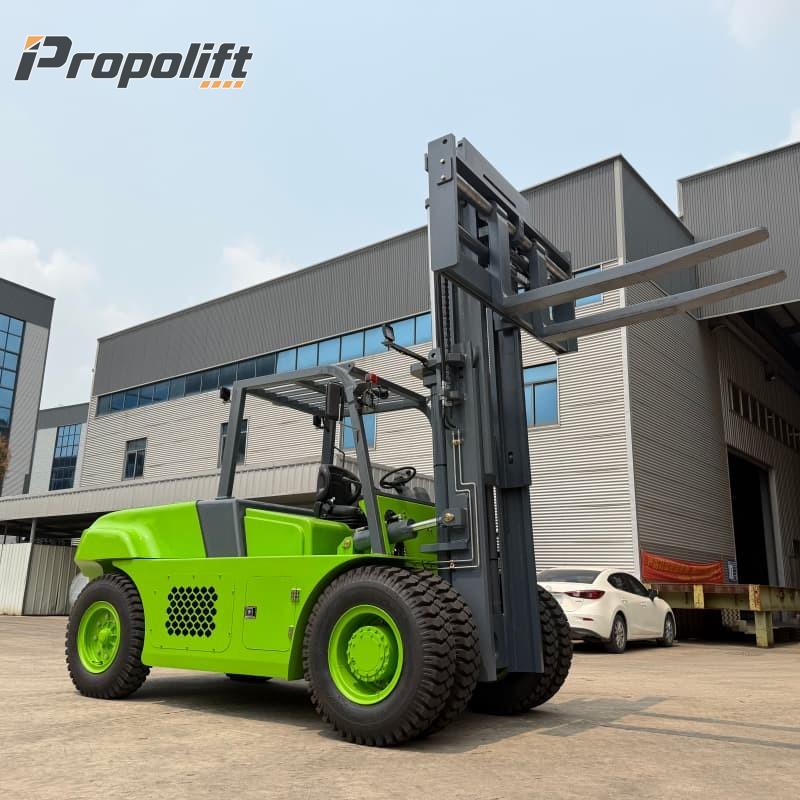

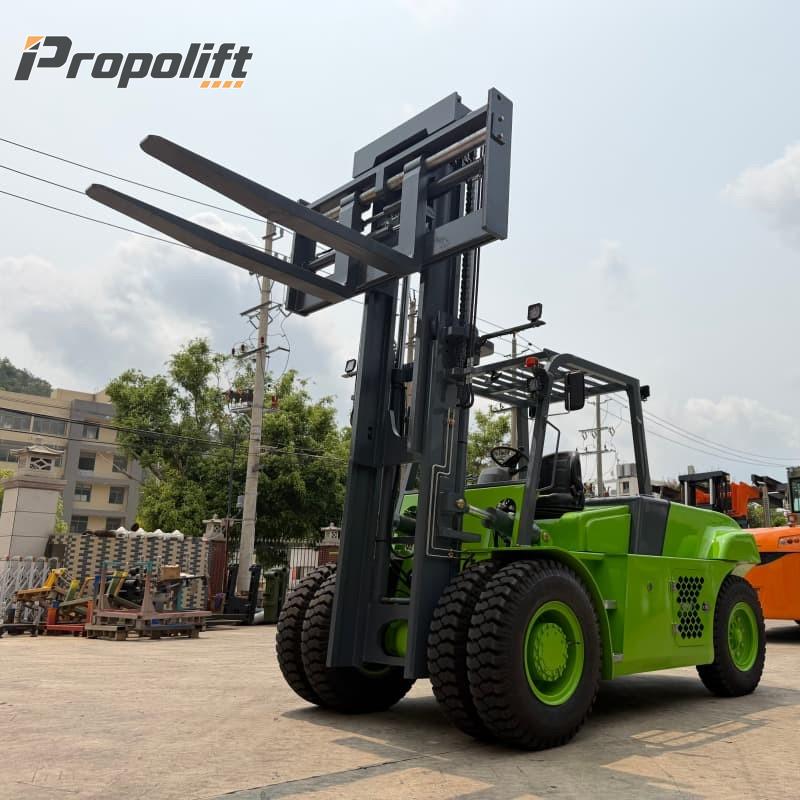

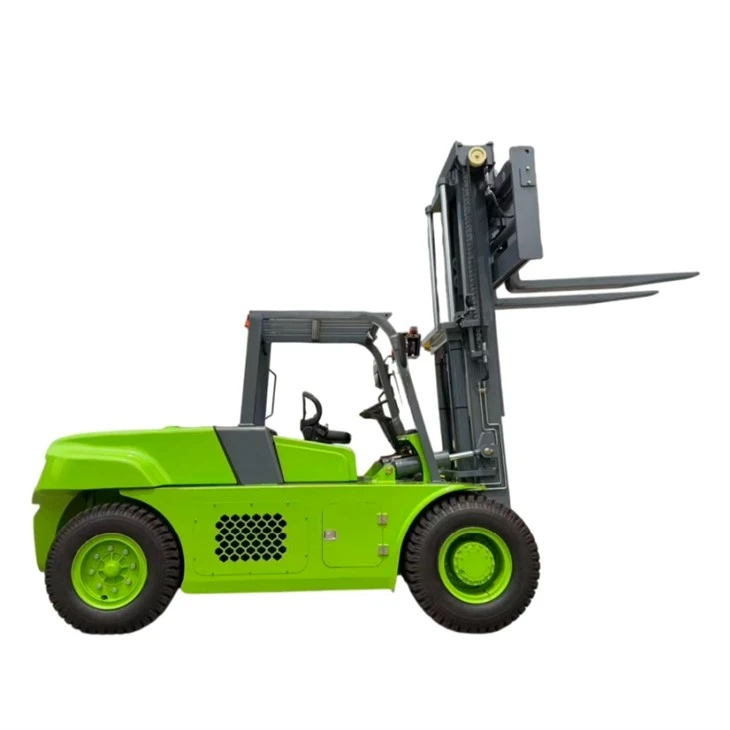

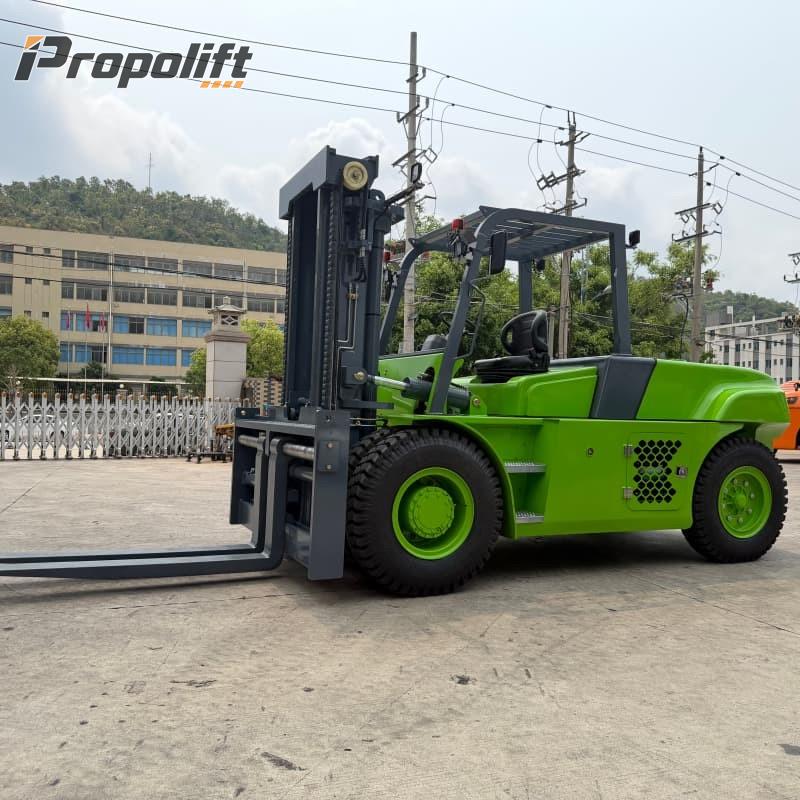

The 12 Ton Electric Forklift is a lithium-powered model rated for 12,000 kg at a 600 mm load center. We use the CPD120 platform for customers who need this capacity but prefer an electric drivetrain. Standard lift height is 3,000 mm.
Power comes from a 544 V LiFePO4 battery rated at 228 Ah / 127.74 kWh. A 60.12 kW motor handles travel, while two 48 kW motors serve the working hydraulics. Liquid and forced-air cooling are used on the main power components.
The truck uses front-wheel drive with four front tires and two rear tires. Loaded travel speed is 18 km/h, loaded lifting speed is 220 mm/s, and the minimum turning radius is 4,680 mm.
Product Parameters
|
Group |
Item |
Specification |
|
Load & Work |
Model |
CPD120 |
|
Rated Capacity |
12,000 kg |
|
|
Load Center |
600 mm |
|
|
Max. Lifting Height |
3,000 mm |
|
|
Travel Speed, Loaded / Unloaded |
18 / 24 km/h |
|
|
Lifting Speed, Loaded / Unloaded |
220 / 280 mm/s |
|
|
Gradeability, Loaded / Unloaded |
18 / 20% |
|
|
Electric System |
Battery Type |
LiFePO4 |
|
System Voltage |
544 V |
|
|
Battery Capacity |
228 Ah / 127.74 kWh |
|
|
Drive Motor |
60.12 kW |
|
|
Working Motors |
48 kW × 2 |
|
|
Truck Layout |
Service Weight |
15,500 kg |
|
Overall Size with Forks |
6,300 × 2,250 mm |
|
|
Minimum Turning Radius |
4,680 mm |
|
|
Fork Size |
1600 × 180 × 80 mm |
Specifications may change with product improvement and the final confirmed production configuration.
Power System Matching
When we build this model, we do not match the battery from rated capacity alone. Daily working hours, loaded travel distance, lift frequency and gradients all affect electrical demand. These details are used to check the battery, motors and cooling arrangement as one set. After wiring and piping are completed, the 12 Ton Electric Forklift is run through travel, lifting, steering and braking checks.
Before Production
Before we release an order to production, we ask for the actual cargo weight, dimensions and center of gravity. Local voltage, frequency and phase are confirmed for the charger. If the forklift will work on ramps or through restricted passages, we also need the travel route and available turning space.
FAQ
Q: Will 127.74 kWh automatically cover one full shift?
A: No fixed shift time can be promised from battery capacity alone. Energy use changes with load ratio, travel distance, lift frequency, gradients and idle time. A typical work schedule gives us a better basis for estimating runtime.
Q: What if our load center is longer than 600 mm?
A: The rated 12,000 kg capacity is based on a 600 mm load center. If the center of gravity moves forward, usable capacity must be checked again before we confirm the configuration.
Q: If an electrical fault occurs, what should our service team send you?
A: Please send the alarm code, display photos and a short video. We can check the wiring diagram and component location before advising on testing or replacement.
