Propolift Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of 16 ton forklift with crane in China. We are committed to providing high quality custom service and OEM service to global clients. Welcome to buy durable 16 ton forklift with crane at competitive price from our factory.

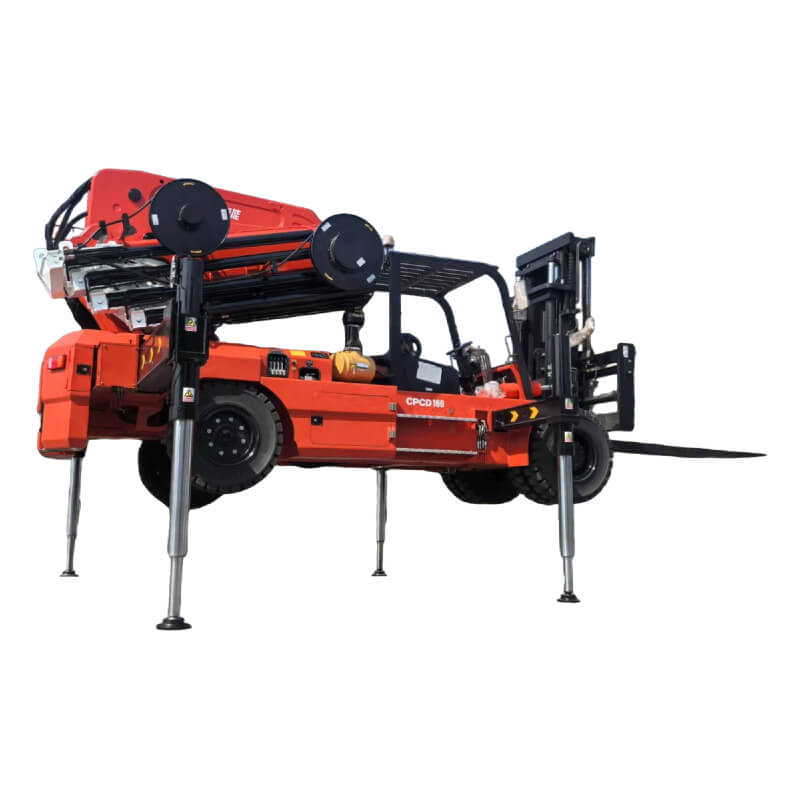

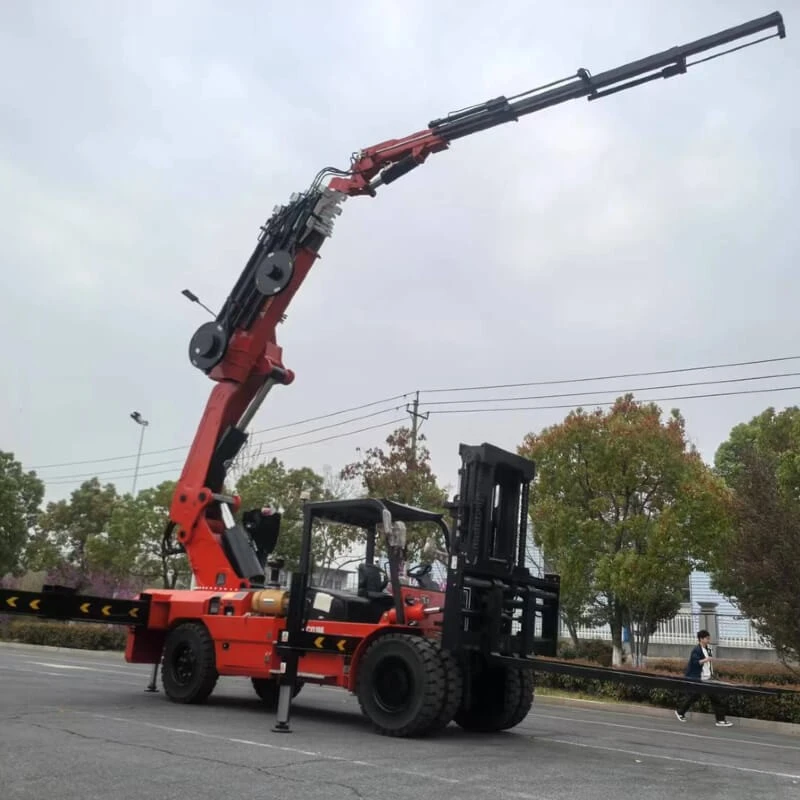

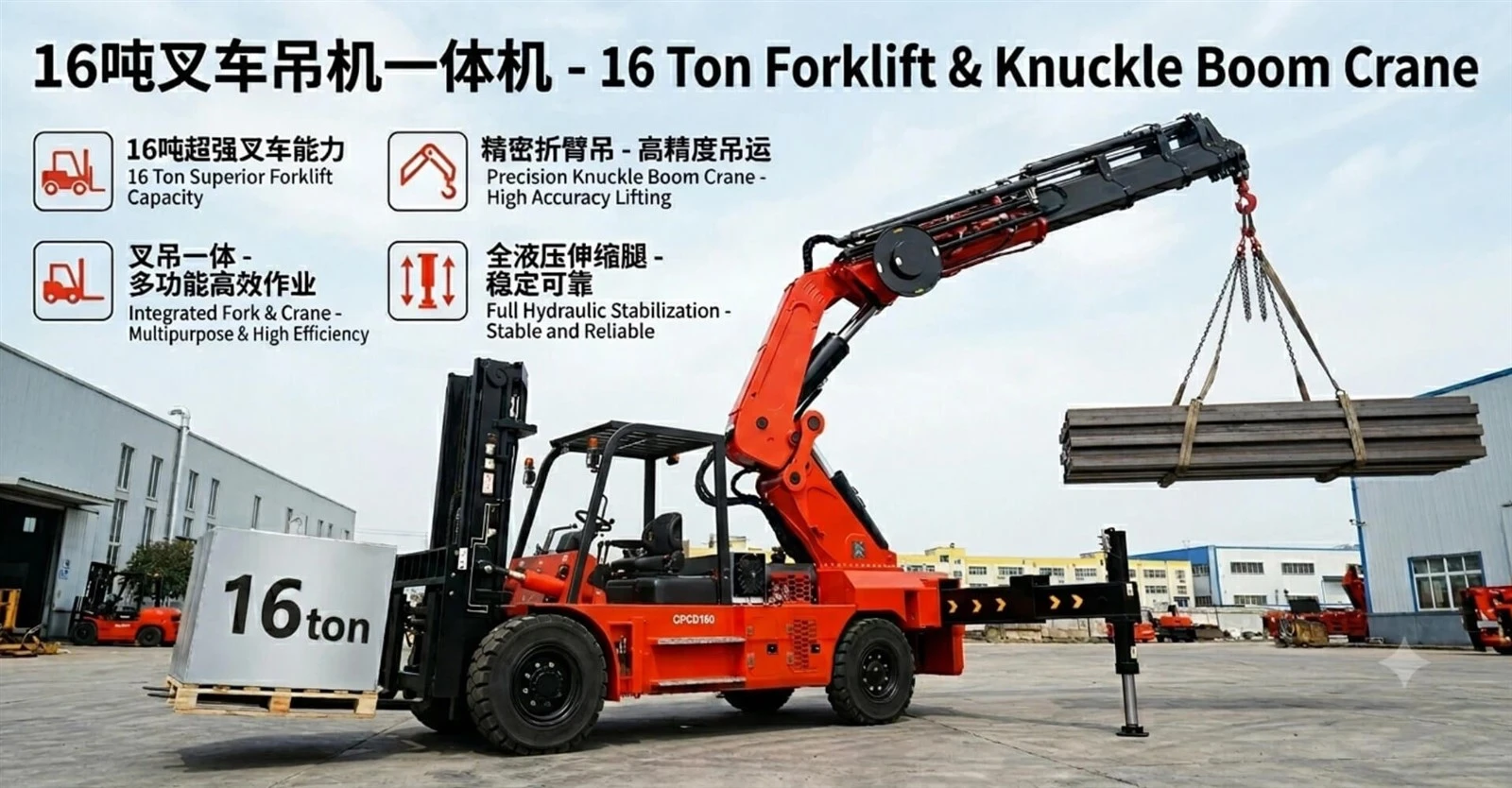

The 16 ton forklift with crane is engineered for heavy cargo loading and unloading in containers and other confined operating environments where conventional forklifts have limited access. By integrating a hydraulic crane system into a heavy-duty forklift platform, the machine provides both the maneuverability required for material handling and the extended reach needed to engage cargo positioned beyond the direct working range of the forks.
This configuration is particularly suited to container stuffing and destuffing operations involving machinery, industrial equipment, steel products, project cargo, stone blocks, and other oversized or irregular loads. In applications where separate forklifts and cranes are traditionally used to complete a single task, the integrated design simplifies the handling process, reduces equipment coordination on site, and improves operational continuity during loading and unloading.
Product Specifications
|
Category |
Item |
Specification |
|
Forklift |
Model |
CPCD160 |
|
Rated Load |
16,000 kg |
|
|
Load Center |
600 mm |
|
|
Overall Dimensions(with Forks) |
6,800 × 2970 × 2,300 mm |
|
|
Turning Radius |
4,880 mm |
|
|
Standard Lifting Height |
3,000 mm |
|
|
Travel Speed |
22 / 28 km/h |
|
|
Gradeability |
20% / 22% |
|
|
Power |
Engine Options |
Yuchai / Cummins |
|
Output Power |
92 / 97 kW |
|
|
Crane System |
Max Lifting Torque |
1200 kN·m |
|
Max Capacity (at 3.6m) |
30,000 kg |
|
|
Max Working Radius |
21,780 mm |
|
|
Max Lifting Height |
24,900 mm |
|
|
Slewing |
360° continuous |
|
|

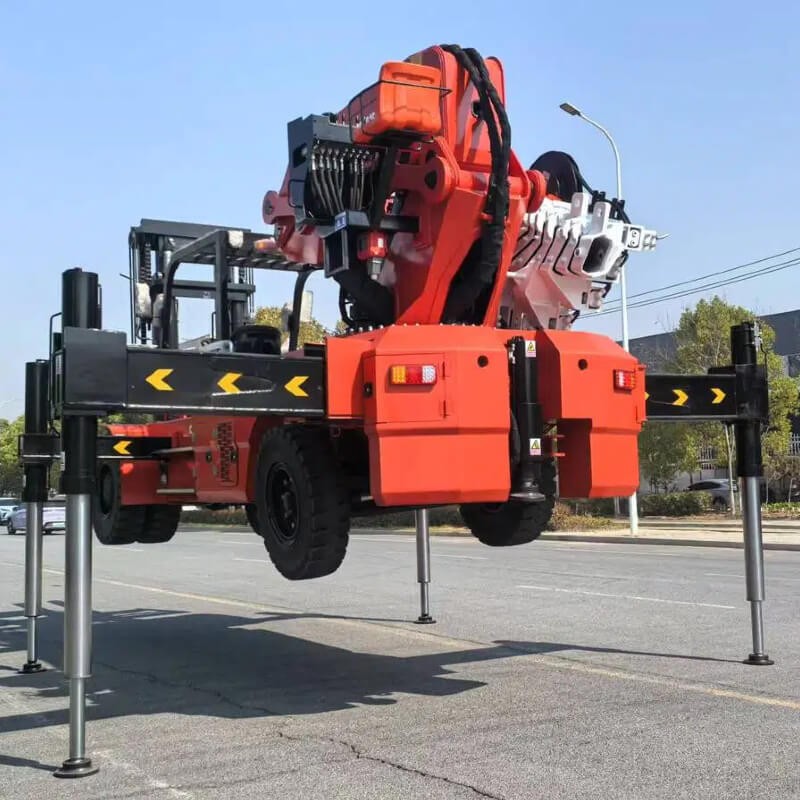

Stabilization |
Outrigger Span |
2,240 – 7,360 mm |
|
General |
System Type |
Forklift + Rear Mounted Crane |
3Why Choose a 16 Ton Forklift with Crane?
The 16 ton forklift with crane combines the handling flexibility of a heavy-duty forklift with the extended working range of an integrated hydraulic crane, allowing operators to complete loading and unloading tasks that would otherwise require multiple pieces of equipment. When cargo is positioned deep inside containers or in areas with restricted access, the crane system provides the additional reach needed to engage oversized and irregular loads without repeated repositioning of the machine. Supported by hydraulic outriggers during lifting operations, the 16 ton lifting forklift crane maintains stability while improving workflow continuity and reducing equipment coordination on site during container stuffing and destuffing operations.
OEM & ODM Service
We provide customized solutions for distributors, rental companies, engineering contractors, and industrial fleet operators.
Available customization options include:
✔ Company logo application
✔ Brand labeling
✔ Color customization
✔ Fork length and dimensions
✔ Engine selection
✔ Operator cabin configuration
✔ Safety warning systems
✔ Lighting systems
✔ Hydraulic function adjustments
✔ Special attachments
✔ Crane configuration optimization
✔ Market-specific compliance requirements
Our engineering team supports project-based customization according to customer operating conditions.
Frequently Asked Questions About the 16 Ton Heavy Duty Forklift with Crane
Q1: Is this 16 ton industrial forklift crane intended to replace a mobile crane?
A1: For many container loading and unloading applications, yes. It combines forklift mobility with crane lifting capability, reducing the need to deploy both a forklift and a separate truck-mounted crane for the same task. However, extremely high lifting heights or long working radii may still require dedicated crane equipment.
Q2: Can the forklift and crane functions be used independently?
A2: Yes. The machine can operate as a conventional heavy-duty forklift for standard material handling tasks, while the crane system can be used when additional lifting reach is required. Operators can select the appropriate function according to the application.
Q3:Are the hydraulic outriggers standard equipment?
A3: Yes. Hydraulic outriggers are equipped as standard to provide additional stability during crane operations. They help distribute the load more evenly and improve safety when lifting heavy cargo.
